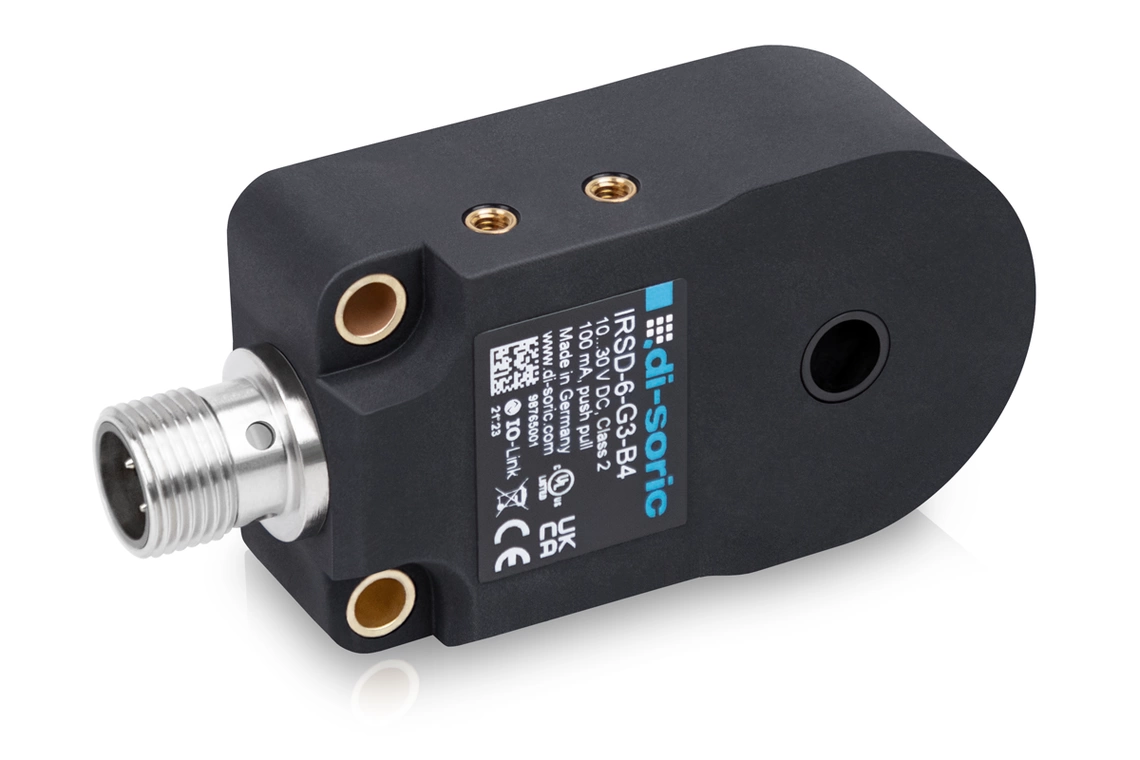

Inductive ring sensor IRSD
IRSD-6-G3-B4
Article Number: 213666
The IRSD inductive ring sensors with IO-Link offer extensive configuration options for application-specific integration and detect the smallest metallic parts reliably. They are available in Ø 6.1 mm to 50.1 mm models and are well suited for quickly supplied parts.
- High resolution
- Short response time
- Sensitivity and pulse stretching adjustable
- Resistant to dirt
- Switchable between static and dynamic operating principle
- Metal connector
- High protection type
- Frequency switchable for reducing the installation distance
- Intelligent teach-in process
- Remote Teach
Your price: Login
Service voltage
10 … 30 V DC
No-load current (max.)
30 mA
Insulation voltage endurance
500 V
Internal diameter
6.1 mm
Housing material
Plastic (PA)
Material
POM (Ring)
Protection class
III, operation on protective low voltage
Approvals
UL
Operating principle
Dynamic/static switchable (IO-Link / PIN 2)
Switching output
Push-pull/PNP/NPN, 100 mA, NO/NC, switchable
Voltage drop (max.)
2 V
Interface
IO-Link
Pulse stretching
adjustable
Resolution steel ball (high functional reliability)
0.7 mm (dynamic), 1.3 mm (static)
Resolution steel ball (smallest object size)
0.5 mm (dynamic), 1 mm (static)
Sensitivity adjustment
IO-Link
Speed of parts (max.)
35 m/s
Speed of parts (min.)
0.1 m/s (dynamic)
Readiness delay (max.)
300 ms
Shock/vibration load
30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation
-25 … +70 °C
Permissible relative humidity
< 95% (+25°C) / < 90% (+40°C), non-condensing (increased humidity affects the sensor nominal resolution)
Protection type
IP 67
Connection
Connector, M12, 4-pin, A-coded
Connection cable
VK …
