Inductive proximity sensor INE

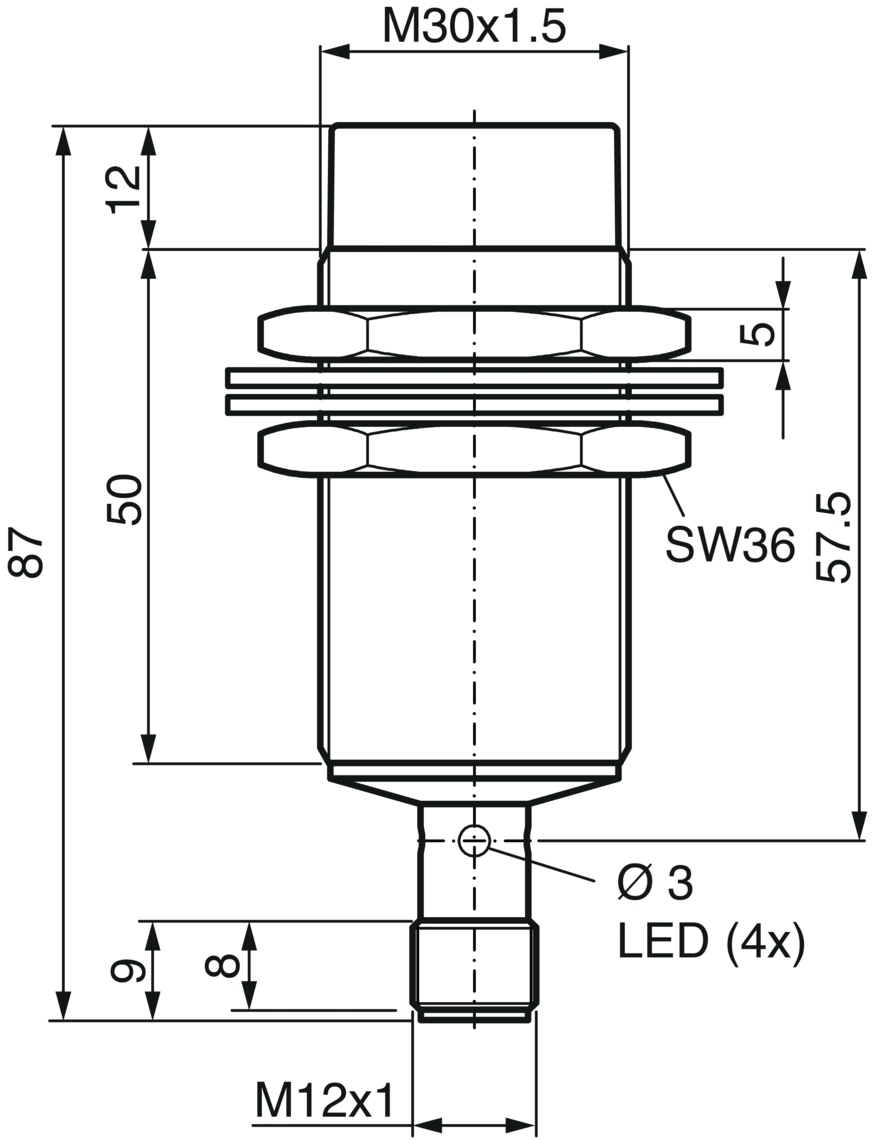

INE-M30/87V-N22G3-B3
Article Number: 214411
The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.
- IO-Link
- Short-circuit protection
- LED
- High protection type
Your price: Login
Service voltage
10 … 36 V DC
No-load current (max.)
< 20 mA
Ripple
< 10 %
Inverse polarity protection
Yes
Short-circuit protection
Yes
Installation type
non-flush
Thread
M30 x 1.5
Housing length
87 mm
Housing material
Nickel brass
Material of sensor probe
PBT
Weight
166 g
Tightening torque
30 Nm
Protection class
III, operation on protective low voltage
Approvals
UL
Operating principle
inductive
Evaluation
digital
Design
Thread
Product series
INE Industrial
Scope of delivery
Sensor, 2 x M30 nuts, 2 x washers
Switching output
Push-pull/PNP/NPN, 200 mA, NO/NC, switchable via IO-Link
Voltage drop (max.)
1.2 V DC (100 mA)
Interface
IO-Link V1.1.5
Switching distance (SN)
22 mm
Standardized measuring plate
66 x 66 x 1 mm
Switching hysteresis (max.)
1 … 20 %
Sensitivity adjustment
IO-Link
LED Anzeige
Yes
Switching frequency
1000 Hz
Shock/vibration load
30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation
-40 … +70 °C
Ambient temperature storage
-40 … +80 °C
Ambient humidity operation
35 … 95 %
Ambient humidity storage
35 … 95 %
Protection type
IP 67
Connection
Connector, M12, 3-pin, A-coded
